1. The operating radius is small, and it can work in a narrow area, which is suitable for trench backfilling.
2. The high-pressure water spraying system sprays evenly, can work intermittently, saves more water, and the water nozzle can be quickly replaced.
3. The forward and backward stepless speed change walking, the streamlined and humanized handle design, the operation is more comfortable and convenient.
4. With driving brake function, it can prevent the machine from sliding down the slope.
5. The engine adopts a well-known domestic brand, with national warranty, and the quality is more guaranteed. International brands can also be selected.
6. It adopts a large-displacement variable piston pump to drive the machine to move steplessly, dual motors drive walking, vibration motor, stable speed, and one button can be pressed.

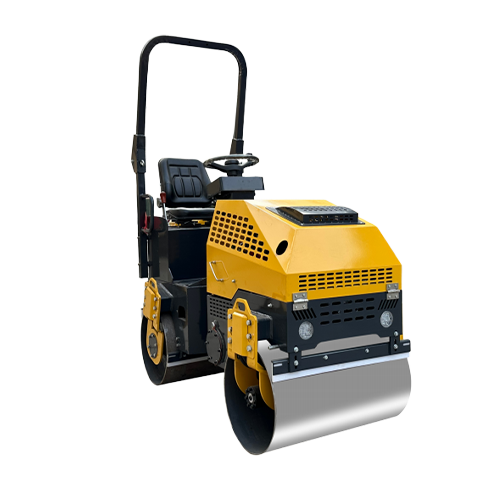

| YGY-1.0T Roller | |||
|---|---|---|---|
| Compaction | |||
| Static Line Load | 56/77N/cm | Nominal Amplitude | 0.5-1mm |
| Vibration frequency | 60HZ | Exciting force | 25KN |
| Engine | |||
| Type | 1-cylinder | Power | 14HP |
| Fuel tank capacity | 36L | Fuel consumption | 320g/kw/h |
| Walk | |||
| Speed | 0-8km/h | Turning radius | 1705mm |
| Theoretical climbing ability | 30% | ||
| Size | |||
| Steel drum width | 800mm | Steel wheel diameter | 500mm |
| Wheelbase | 1276mm | Total length | 1865mm |
| Overall width | 900mm | Total height | 2080mm |
