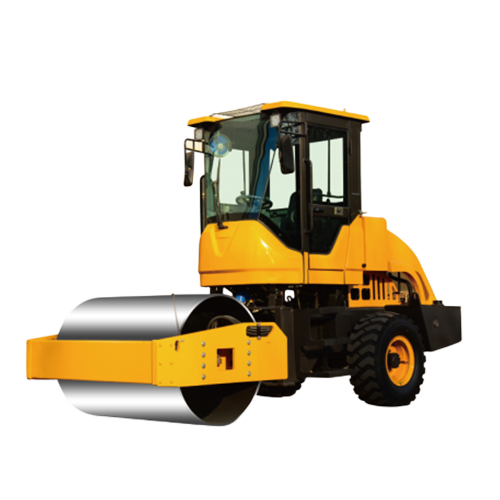

YGY-4T vibratory roller is mainly suitable for ground compaction, and is suitable for compaction of pebbles, sandy soil, moraine soil, blasted rock and clay soil. It is also suitable for compaction of concrete and stabilized soil foundation materials in various large-scale projects. It is an ideal compaction equipment for the construction of high-grade highways, airports, ports, dams and industrial construction sites.
1. The machine is flexible and convenient, suitable for compacting road earthwork, paving and compacting asphalt concrete, sand and gravel mixture and cement stabilized soil, as well as trench backfilling and construction engineering backfilling. It is an ideal compaction equipment.
2. Equipped with high-efficiency and energy-saving diesel engine, it has high power, strong power and high efficiency.
3. The braking system adopts oil-gas brake, which makes the brake more reliable and light, and is equipped with hand brake for more convenient operation.
4. The machine travels with hydraulic vibration and hydraulic steering, and has reliable performance.
5. Articulated connection, flexible steering, convenient and fast transfer.
6. The whole machine has a compact and reasonable structure, high configuration, strong performance, reliable quality and high work efficiency.
7. Small investment, fast return, high reliability, simple and convenient maintenance.
| YGY-4T Roller | |||
|---|---|---|---|
| Compaction | |||
| Static Line Load | 236N/cm | Nominal Amplitude | 0.5mm |
| Vibration frequency | 45HZ | Exciting force | 70KN |
| Engine | |||
| Type | 4-cylinder | Power | 36.8kw |
| Fuel tank capacity | 60L | Fuel consumption | 285g/kw/h |
| Walk | |||
| Speed | 0-18km/h | Turning radius | 2350mm |
| Theoretical climbing ability | 30% | ||
| Size | |||
| Steel drum width | 1450mm | Steel wheel diameter | 1000mm |
| Wheelbase | 2350mm | Total length | 4500mm |
| Overall width | 1650mm | Total height | 2670mm |
