1. The overall frame structure has higher strength and good stability;
2. Use imported or domestic well-known brand engines, which are powerful, energy-saving and environmentally friendly, and meet the National III emission standards;
3. It adopts imported hydraulic systems, and the overall system is stable and reliable;
4. The cab adopts a large-angle rear flip design, which is more convenient for maintenance;
5. The high-strength cab that meets the FOPS/ROPS international safety standards has a larger and more comfortable driving space;
6. Integrated control panel design, the performance parameters of the whole machine are clear at a glance, ensuring that the performance of the whole machine is fully understood during use;
7. Hydraulic operation control adopts electronic self-locking interlocking design to reduce misoperation and make it safer to use;
8. Dual throttle control, manual throttle is more convenient, and foot throttle is more in line with daily operating habits;
9. The internationally used quick device can quickly and conveniently replace various accessories, and the hydraulic quick connector has strong versatility.

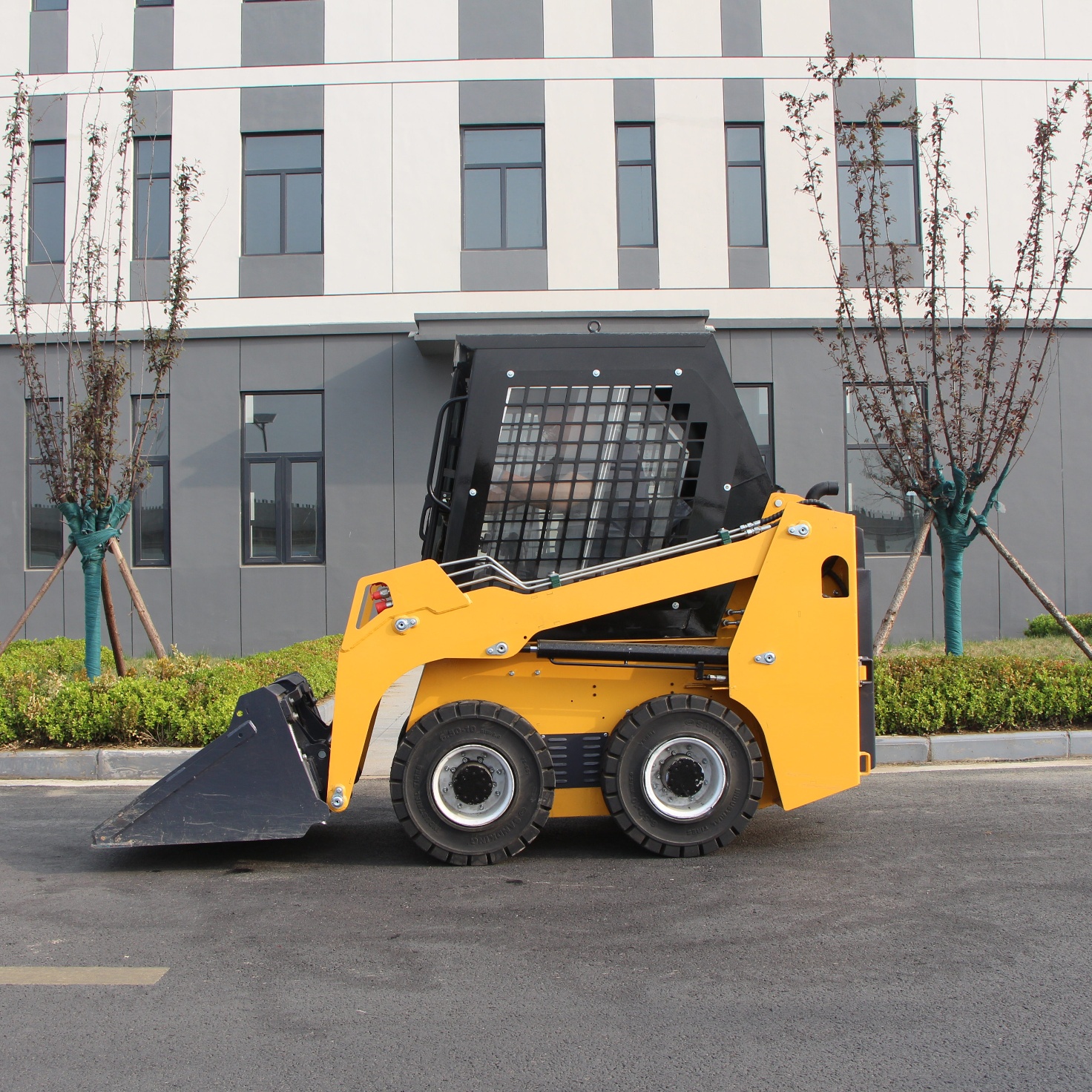

| YG-S25 Skid Steer Loader | |||
|---|---|---|---|
| Engine Brand | Laidong385/Yanmar380 | Engine power | 18.8KW |
| Maximum working height (mm) | 3410 | Maximum pin height(mm) | 2540 |
| Maximum unloading height(mm) | 2000 | Distance from highest point (mm) | 2400 |
| Bucket swing angle | 130° | Bucket discharge angle | 30° |
| Overall height(mm) | 1865 | Height from ground (mm) | 130 |
| Overall width(mm) | 950 | Total length (mm) | 2730 |
| Unloading distance (mm) | 510 | Work Pressure (MPa) | 18 |
| Bucket capacity(m³) | 0.22 | Tire specifications | 570*155 |
