1. The overall frame structure has higher strength and good stability;
2. Use imported or domestic well-known brand engines, which are powerful, energy-saving and environmentally friendly, and meet the National III emission standards;
3. It adopts imported hydraulic systems, and the overall system is stable and reliable;
4. The cab adopts a large-angle rear flip design, which is more convenient for maintenance;
5. The high-strength cab that meets the FOPS/ROPS international safety standards has a larger and more comfortable driving space;
6. Integrated control panel design, the performance parameters of the whole machine are clear at a glance, ensuring that the performance of the whole machine is fully understood during use;
7. Hydraulic operation control adopts electronic self-locking interlocking design to reduce misoperation and make it safer to use;
8. Dual throttle control, manual throttle is more convenient, and foot throttle is more in line with daily operating habits;
9. The internationally used quick device can quickly and conveniently replace various accessories, and the hydraulic quick connector has strong versatility.

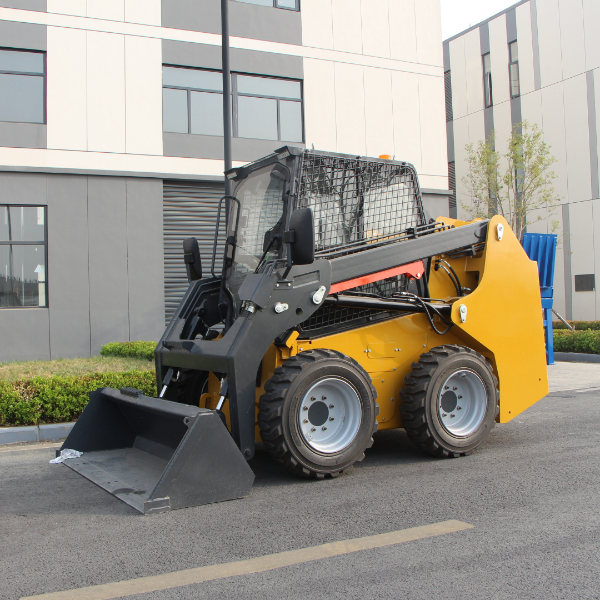

| YG-S55 Skid Steer Loader | |||
|---|---|---|---|
| Engine Brand | CumminsC4DA1-2C3 | Maximum operating altitude (mm) | 3790 |
| Rated power (KW) | 36.8 | Height to bucket pin (mm) | 3020 |
| Number of cylinders | 4 | Cab roof height(mm) | 2095±5% |
| Emission standards | National III | Bucket ground level length(mm) | 3450±5% |
| Rated load (kg) | 890 | Bucket pin horizontal length (mm) | 2700±5% |
| Maximum unloading height (mm) | 2384±5% | Unloading distance (mm) | 520 |
| Maximum breakout force (kn) | 25 | Travel speed (Km/h) | 0-12 |
| Bucket capacity(m³) | 0.4 | Bucket flip angle on the ground | 27° |
| Work Pressure(MPa) | 21 | Wheelbase(mm) | 1370 |
| Operation quality (kg) | 2880 | Bucket width(mm) | 1800 |
