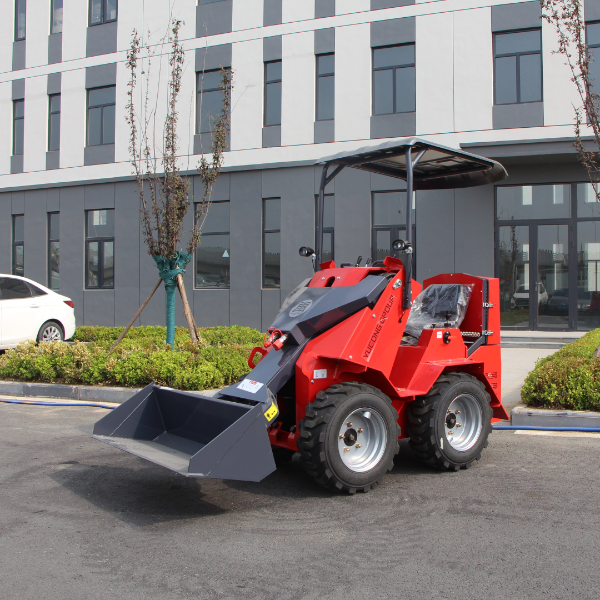

YG-S390 multifunctional mini skid steer shovel is mainly used in places with small working sites, uneven ground and frequent changes in working content. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
1. The mini skid steer is easy to operate, and the handle can handle actions such as walking, lifting and somersaults; the plunger pump motor is stable.
2. Four-wheel drive, adaptable to various environments; various forms of foot pedals make operation safer and more convenient; servo and standard operation modes.
3. The mini skid steer is easy to maintain. The oil outlet is located outside the body, which is convenient for replacing air filters, engine oil, oil filters, and spark plugs; the rear guard is easy to remove and the upper cover can be opened.
4. Internationally renowned brand engine, stable and reliable, quality assurance.
5. The YG-S390 skid steer loader has a variety of tires and track modes to choose from, which is more adaptable.
6. The YG-S390 skid steer loader can greatly simplify manual work and improve efficiency.
Main parameters:
| YG-S390 Skid Steer Loader | |||
|---|---|---|---|
| Engine Brand | Runtong | No.of cylinders | 1cylinder |
| Net Power(HP) | 15 | Operating height (mm) | 2460 |
| Height to bucket hinge pin(mm) | 1872 | Vehicle height (mm) | 1900 |
| EConsole height(mm) | 1250 | Overall length with GP bucket(mm) | 2450 |
| Overall length without bucket(mm) | 1960 | Overall width(mm) | 1000 |
| Ground clearance(mm) | 170 | Unloading height (mm) | 1376 |
| Rated loading capacity (kgs) | 200 | Bucket volume (m³) | 0.12 |
| Bucket width(mm) | 1050 | Machine weight(kgs) | 1000 |
| Rated pressure(MPa) | 18 | Walking speed(km/h) | 0-5 |
