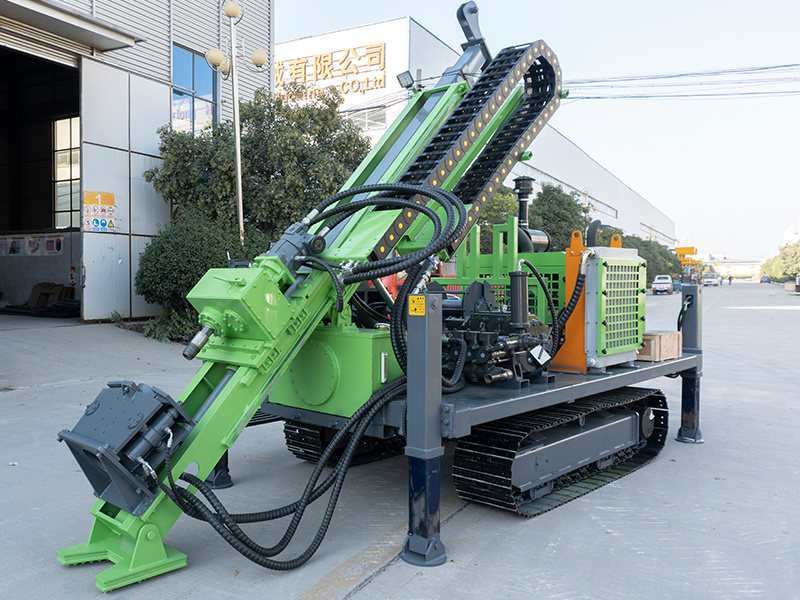

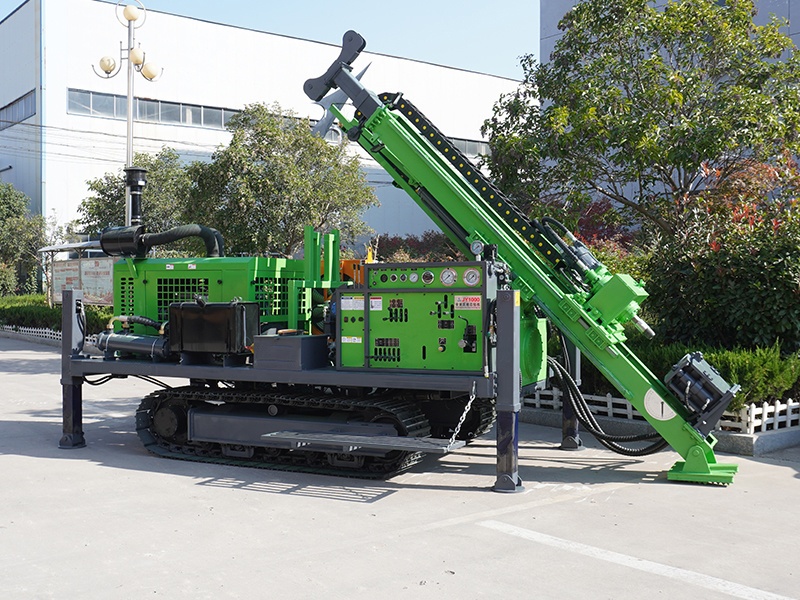

Introducing our Core Drilling Rig, designed for precision and reliability in geological exploration and mineral investigation. Perfect for mining, environmental studies, and construction, this rig delivers exceptional performance.
Accurate Core Samples: Engineered to extract high-quality core samples, ensuring reliable data for your projects.
Robust and Durable: Built to withstand harsh conditions, providing longevity and consistent performance in the field.
User-Friendly Operation: Intuitive controls and design make it easy to operate, increasing efficiency on every job site.
Main parameters：
| YGQY-1000 Exploration core drilling rig | |||
|---|---|---|---|
| Drilling capacity | |||
| BTW (m) | 1400 | NTW (m) | 1200 |
| HTW (m) | 1000 | NQ (m) | 800 |
| Hydraulic system | |||
| Rated pressure (MPA) | Main pump 115ml/r, 32MPa | Cooling mode | Air cooling + water cooling |
| Engine | |||
| Engine type | Weichai Six cylinders | Rated power (Kw) | 129 |
| Power Head | |||
| Maximum torque (N.m) | 2600 | Maximum rotating speed (rpm) | 1400 |
| Feeding Stroke (m) | 2.0 | Lifting force (KN) | 360 |
| Propulsion force (KN) | 180 | ||
| Transport size | 5000*2050*2600(mm) | Whole machine weight | 7.8T |
