Introducing our Hydraulic Drill, engineered for optimal performance in demanding drilling applications. Perfect for construction, mining, and industrial tasks, this drill combines strength with precision.
High Efficiency: Delivers powerful drilling with exceptional speed, reducing project completion time and increasing productivity.
Robust Design: Built to endure tough environments, ensuring reliability and durability on every job site.
User-Friendly Features: Ergonomic controls and intuitive operation make it accessible for operators of all skill levels.
Main parameters：

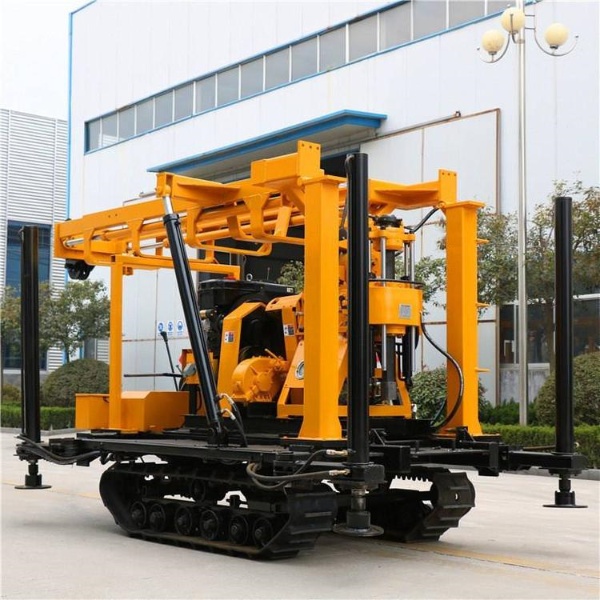

| YGL-200 Hydraulic water well drilling rig | |||
|---|---|---|---|
| Drilling depth | 200m | Max open hole caliber | 75-300mm |
| Final hole diameter | 75mm | Kelly | 53/59*4200mm |
| Drill pipe diameter | 50/60mm | Drilling angle | 90°-75° |
| Auxiliary power diesel engine | 14.7kw 2200r/min | Structural weight/Size | 3000kg/3800*1950*2700 |
| Spindle | |||
| Spindle speed | 64/128/287/557 r/min | Spindle stroke | 450mm |
| Windlass | |||
| Single rope lifting force | 24kn | Single rope lifting speed | 0.12/0.22/0.49/0.95m/s |
| Drum diameter | 140mm | Wire rope diameter | 13mm |
| Wire rope capacity | 35m | ||
| Derrick | |||
| Rated load | 5t | Effective height | 6m |
| Wire rope capacity | 35m | Tower leg specification | 89mm |
