Introducing our Hydraulic Drill, engineered for optimal performance in demanding drilling applications. Perfect for construction, mining, and industrial tasks, this drill combines strength with precision.
High Efficiency: Delivers powerful drilling with exceptional speed, reducing project completion time and increasing productivity.
Robust Design: Built to endure tough environments, ensuring reliability and durability on every job site.
User-Friendly Features: Ergonomic controls and intuitive operation make it accessible for operators of all skill levels.
Main parameters：

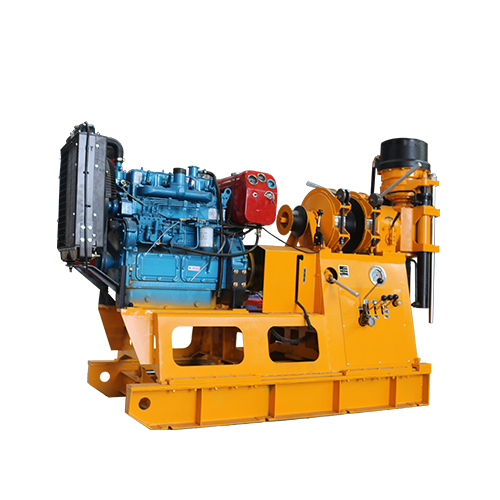

| YG-300YY Hydraulic water well drilling rig | |||
|---|---|---|---|
| Drilling depth | 300m | Drilling diameter | 300-75mm |
| Hole diameter | 300mm | Final hole diameter | 75mm |
| Drill rod | Φ60 | Drilling angle | 90°--65° |
| Vertical axis | |||
| Vertical shaft forward speed | 65-1172 r/min | Vertical shaft reverse speed | 51-242 r/min |
| Vertical shaft reverse speed | 560mm | Vertical shaft lifting capacity | 6000kg |
| Main winch | |||
| Single rope lifting speed | 0.5-1.9m/s | Wire rope diameter | 12.5mm |
| Single rope lifting capacity | 3000kg | Roll diameter | 300mm |
| Roll capacity | 50m | ||
| Gear pump | |||
| Gear oil pump | CBF-F63/25 | Front flow pressure | 63L/min 20Mpa |
| After flow pressure | 25L/min 20Mpa | ||
| Diesel engine | 33KW | ||
