1. Equipped with a 194KW Cummins 6-cylinder turbocharged engine, providing powerful performance and long service life.
3. Features an Italian imported 3-section oil pump, equipped with foam pump, winch, multifunctional generator, and front support leg swing cylinder.
5. Large hole diameter, deep drilling depth, and fast advancement speed.
7. Parallel drive design ensures adequate power, reasonable distribution, and a unique hydraulic system that is simple to maintain and cost-effective.
9. Dual system configuration: 1) Pneumatic system with air compressor; 2) Mud pump system with mud pump.

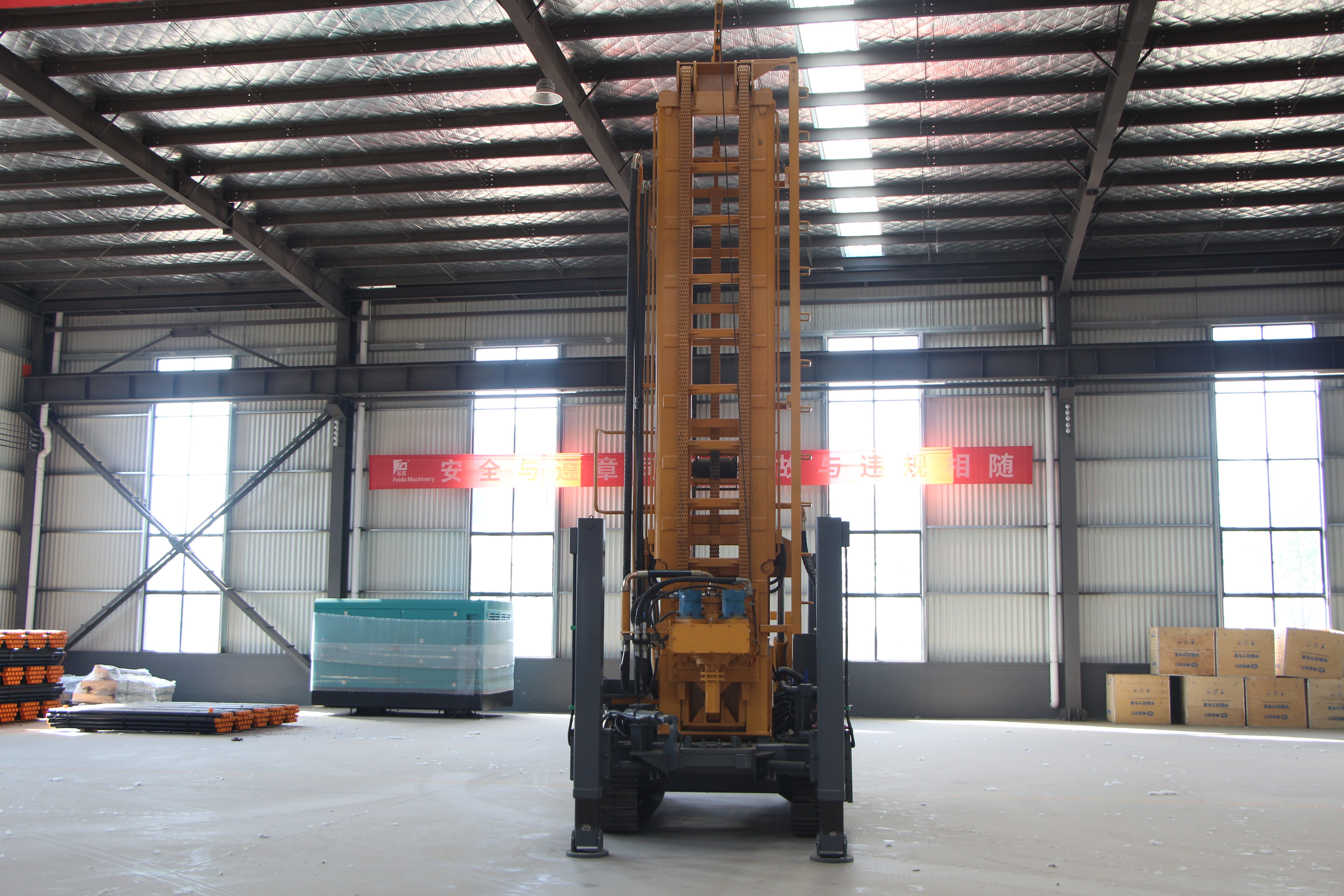

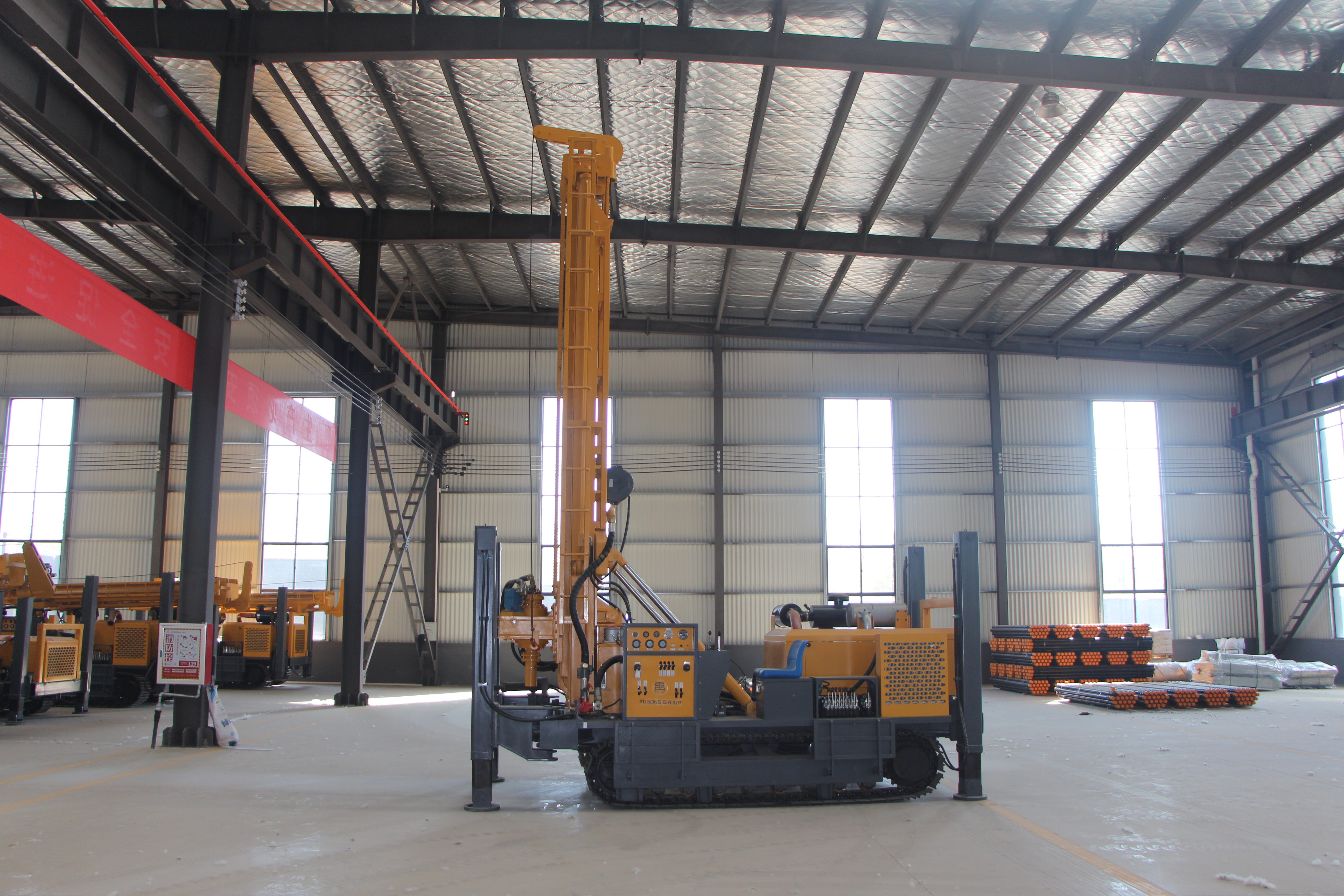

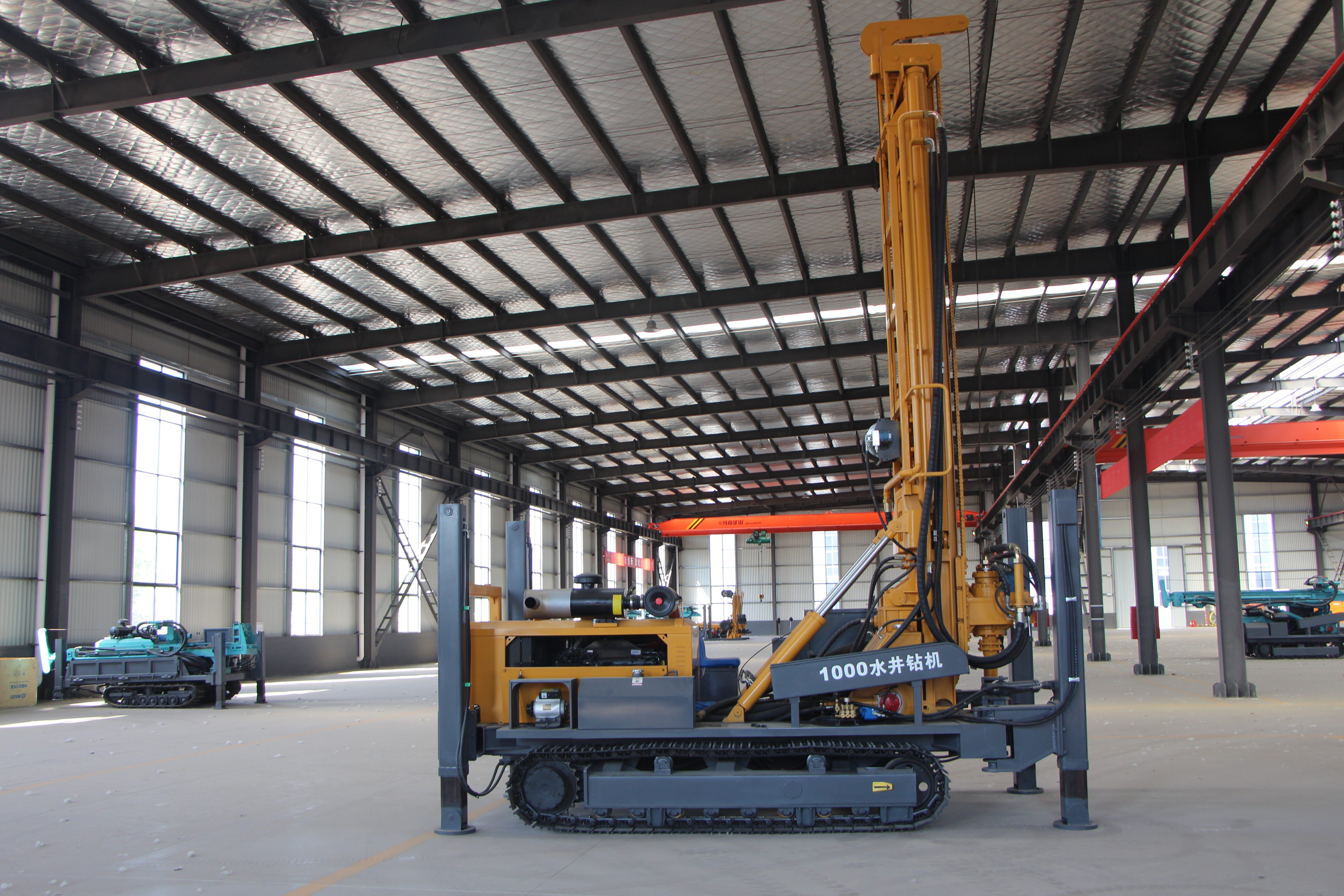

| YGQZ-1000 Pneumatic water well drilling rig | |||
|---|---|---|---|
| The weight (T) | 13 | Drill pipe diameter (mm) | Φ102/Φ108/Φ114/Φ117 |
| The hole diameter (mm) | 140-400 | Drill pipe length (m) | 1.5m / 2.0m / 3.0m / 6.0m |
| Drilling depth (m) | 1000 | Rig lifting force (T) | 36 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of loading (m) | 2.95 |
| Equipped capacitor (kw) | 194 | Hoisting force of winch (T) | 2 |
| Using air pressure (MPA) | 1.7-3.5 | Swing torque (N.m) | 9000-14000 |
| Air consumption | 17-42 | Dimension (mm) | 6300*2300*2950 |
| Swing speed (rpm) | 45-140 | Equipped with hammer | -- |
| The penetration efficiency (m/h) | 15-35 | High leg stroke (m) | 1.7 |
| The engine brand | Cummins | ||
