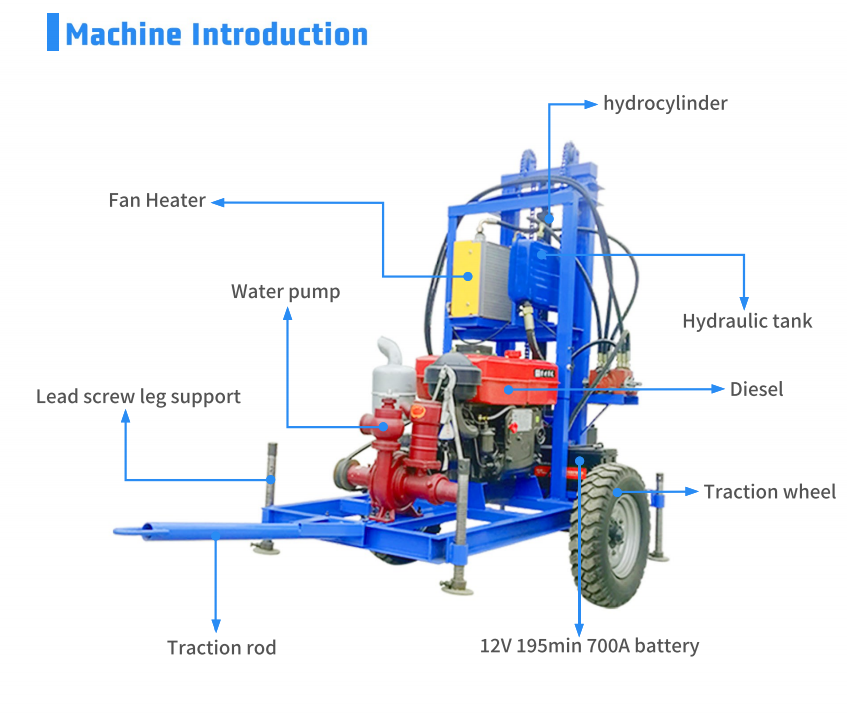

Main features:
1. The diesel engine is equipped with electric start, which is convenient to start and reduces the labor intensity of the operator.
2. The drilling rig adopts the hydraulic working principle and is equipped with a radiator, so the drilling rig can work continuously with high efficiency.
3. Equipped with a high-power hydraulic motor, the power head can be reversed.
4. The drilling rig is equipped with a hydraulic cylinder, and the oil pressure can be increased and decreased by operating the handle.
5. The drilling rig has its own water pump, reasonable structure, compact layout, and good slag discharge effect.
6. Equipped with a traction bar and a wheeled walking mechanism, the drilling rig is easy to move.
7. Equipped with a wire support leg for leveling the drilling rig.
Main parameters:
| YGC-150 | |
|---|---|
| Drilling depth | 0~150m |
| Opening diameter | 300mm |
| Final hole diameter | 100-300mm |
| Drill pipe specifications | Φ50*1500mm |
| Drilling rig power | 22HP |
| Starting voltage | 12V |
| Pump flow | 65m³/h |
| Shipping dimensions | L2110*W960*H1700mm |
| Construction size | L2800*W1200*H2900mm |
| Machine weight | 560KG |
| Number of operators | 1 |
