Key Features:
1.The ability to lift and transport heavy loads of up to 6 tonnes makes it ideal for construction, mining and industries that require moving large materials such as steel beams, machinery or concrete blocks.
2.Equipped with sturdy large-diameter tires and a robust suspension system, it enables operation on uneven, muddy or rocky terrain.
3.It features a wide wheelbase, a low center of gravity and a reinforced chassis.
4.Powered by a high-pressure diesel engine, it provides the strength needed to climb slopes, traverse rough terrain and handle heavy loads efficiently.
5.The design features an ergonomic cab, air conditioning, a shock-resistant seat and excellent visibility to reduce fatigue over long shifts in challenging conditions.
Main parameters：

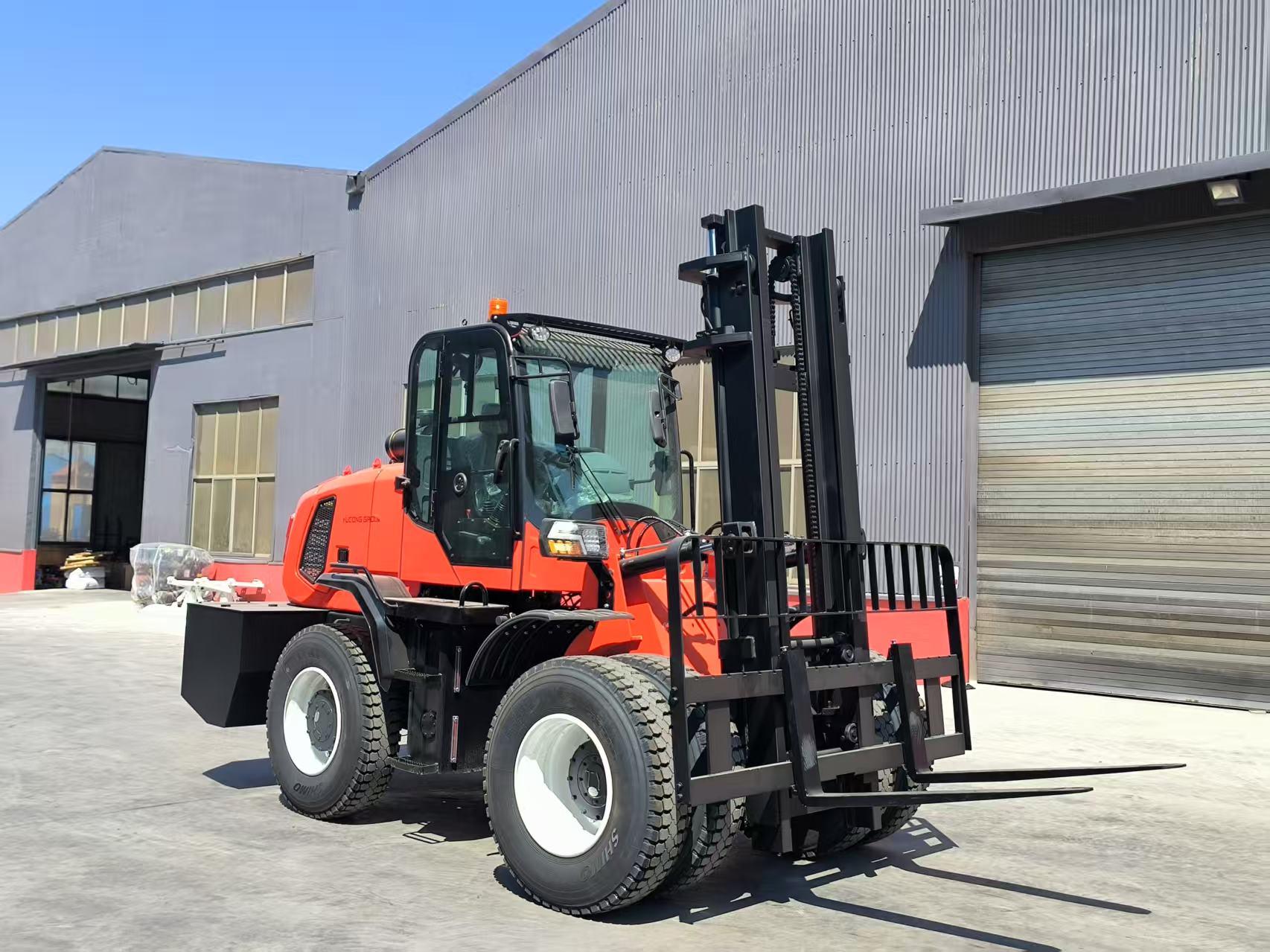

| YGCY-60 Rough Terrain Forklift | |
|---|---|
| Vehicle weight | 6800KG |
| Wheelbase | 2400mm |
| Overall dimensions | 4450*2150*2600mm |
| lifting height | 3-6 meters |
| Rated lifting weight | 6000KG |
| Engine Model | 4102Supercharged |
| Top speed | 30Km/h |
| Cab | New electrophoresis luxury grille |
| Gear | 4 forward gears 4 reverse gears |
| Climbing angle | ≤45° |
| Gearbox | Dual high and low speed hydraulic torque converter |
| Axles | Widen and enlarge the wheel side reduction bridge |
| Minimum ground clearance | 280mm |
| tire | Front double row 12R22.5 steel wire tires Rear single row 16/70-20 high pressure engineering tires |
| Drive mode | Four-wheel drive |
